Project: TV Series​

​

​​​

Date: March  - June 2023 // October - November 2023

Role: Draughtsperson [PREP BLK1]

​​

Production Designer: Mike Gunn

Supervising Art Director: Martin Kelly

Prod. Company: Left Bank Pictures & Sony Pictures TV

​​​​​​

​

​​​​​​​

I worked on this project during the PREP stage and contributed to two key sets: INT Castle Leathers & INT Castle Leoch.

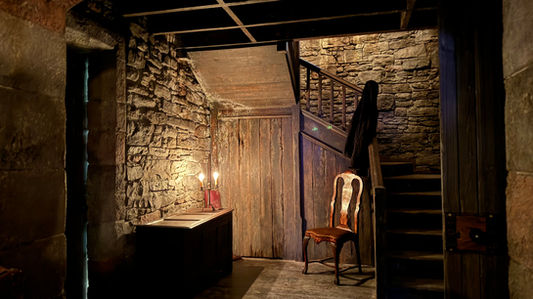

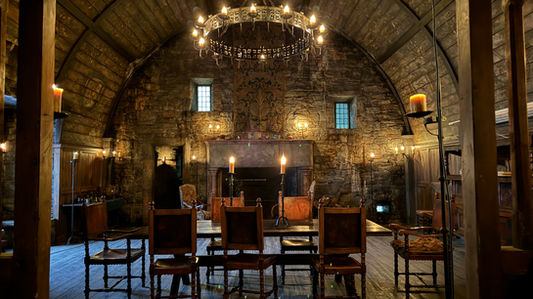

For INT Castle Leathers, I produced most of the technical drawings, including plans and elevations for all rooms, along with details such as stairs, fireplaces, a balcony, and archways. I modelled the entirety of the set in SketchUp and worked closely with the art director and assistant art director.

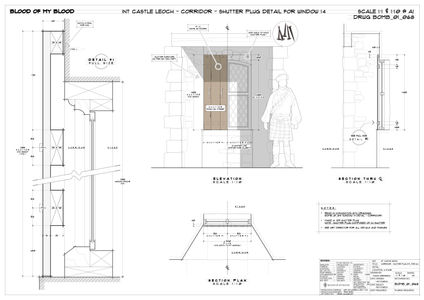

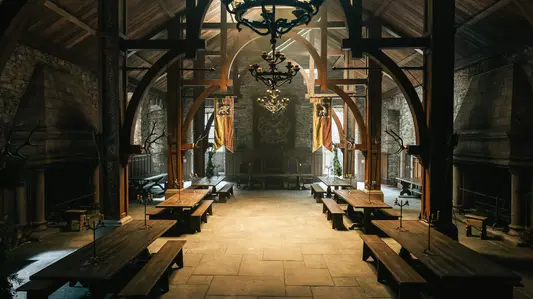

The INT Castle Leoch set was adapted from the original Outlander S1 set for Blood of My Blood S1. This required extensive research to gather existing drawings, continuity references and set photos, and locate remaining elements from the original build. As a result, the drawings combine existing material with new designs. I modelled all elements from my drawings in SketchUp and collaborated with the construction and plaster departments and the art director.

​

​​

Selected drawings & images  >>>

​​

​​

​​
