Models

Digital & Physical Scale Models

Conceptualising a project using 3D models to test a design and engage with the viewer. Models speak to a broader audience and are an interactive way to communicate a project.

Generating 3D digital models using SketchUp and occasionally Vectorworks. Building physical scale models by hand, or sometimes assisted by laser cutting machine using DWG files.

  • sketchup
  • vw
  • main
  • dwg
  • laser
3D Digital Model | Developed Design | View of the two bathrooms
3D Digital Model |  Developed Design | Guest bathroom
3D Digital Model |  Developed Design | En suite master bathroom
3D Digital Model |  Developed Design | Furniture - En suite master bathroom
3D Digital Model | Concept Design | Extension
3D Digital Model | Concept Design | Extension
3D Digital Model | Concept Design | Extension
3D Digital Model | Concept Design | Extension

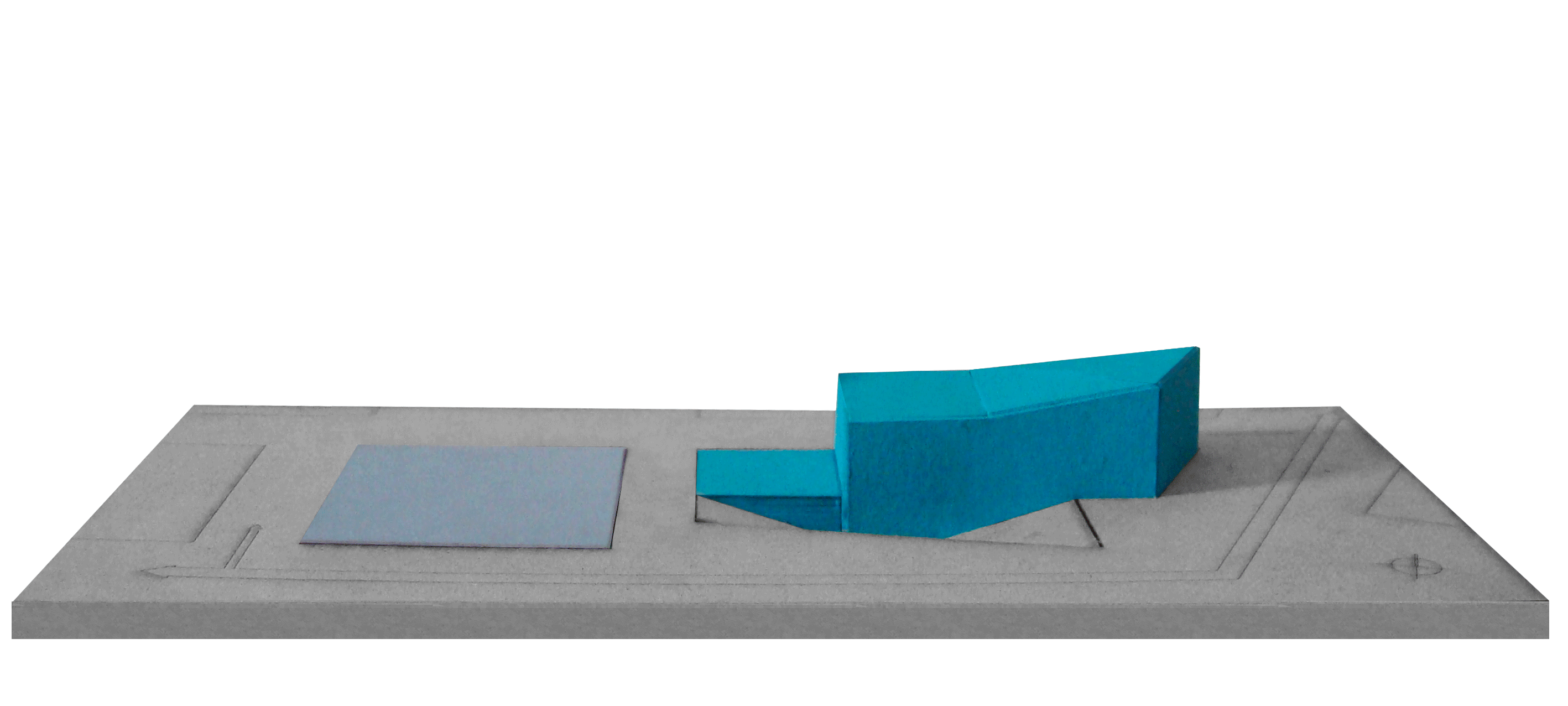

Physical Scale Model | Final model | Scale 1:200
Physical Scale Model | Final model | Scale 1:200
Physical Scale Model | Final model | Scale 1:500
Physical Scale Model | Final concept model | Scale 1:500
